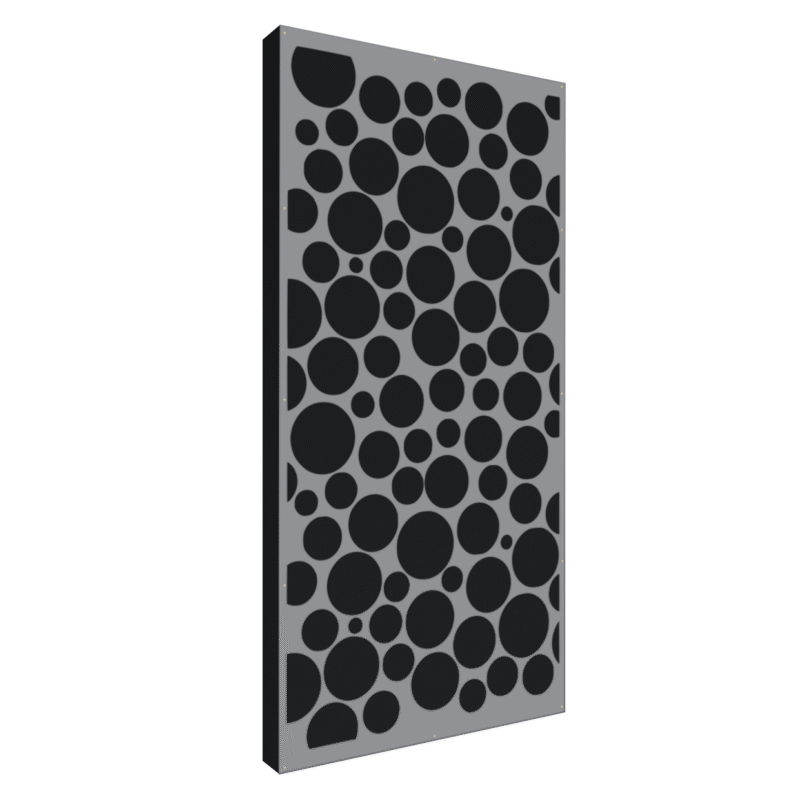

AbFuser Dots WOOD 100 x 50 cm - 10. Grey, 6 cm

verifiedAbsorber-diffuser hybrid · 100 × 50 cm

3D Configurator

1 / 5

AbFuser Dots WOOD 100 x 50 cm

A hybrid acoustic panel that absorbs the low frequencies and diffuses the mid and high tones. The perforated front helps limit echo without stripping the interior of its natural acoustic space.

starstarstarstarstar

4.75 4 reviews

from 114,90 €the price depends on the thickness

1check Color —

2check Thickness —

3check Mounting method Wall

Your configuration

Color
Thickness
Assembly: Wall mountingdefault

Color

Thickness

Totalfrom 114,90 €

Installation method
LED backlighting
Choose a size to see available LED backlighting options

Aura LED – LED backlighting
See the full Aura LED description – click here

Aura LED - 100 × 50 cm
*Color

*Thickness

Reset options

local_shippingFree delivery in 2-7 business daysDetails

replyUp to 14 days to returnReturn policy

verified_user3-year manufacturer’s warrantyQuality guarantee

constructionInstallation in 3 simple stepsVideo (0:20)

lockSecure payments
Mastercard

3D Room Planner Design your room in 3D

Not sure which color to choose? Order material samples →

multiline_chart

It absorbs and diffuses

The hybrid construction combines an absorber with a binary diffuser

blur_circular

The DOTS pattern

The round holes of varying diameters combine diffusion with absorption

straighten

Two thicknesses

The 100 × 50 cm format in a 6 or 11 cm version

palette

10 front colors

From natural wood to Grey, White, Black and Red

Construction

A milled front and an integrated absorber

The construction combines a decorative CNC-made front with an absorbing layer and a rigid body.

The DOTS front
About 4 mm of class I beech plywood for colors 1-6 or painted furniture board for colors 7-10. Round holes of varying diameters form the diffusing pattern.
Precise CNC milling
Computer-controlled milling ensures precise cuts and a repeatable pattern across the whole front.
The absorbing layer
Specialist acoustic wool or sound-absorbing EchoFill acoustic granulate, with particular focus on low frequencies.
The body and the fabric
A construction of 3 mm HDF, furniture board and beech plywood, plus acoustically transparent Standard 180 g/m² fabric.

Dimensions and prices

Choose the thickness of the 100 × 50 cm panel

The price depends solely on the thickness; the chosen color doesn't affect it.

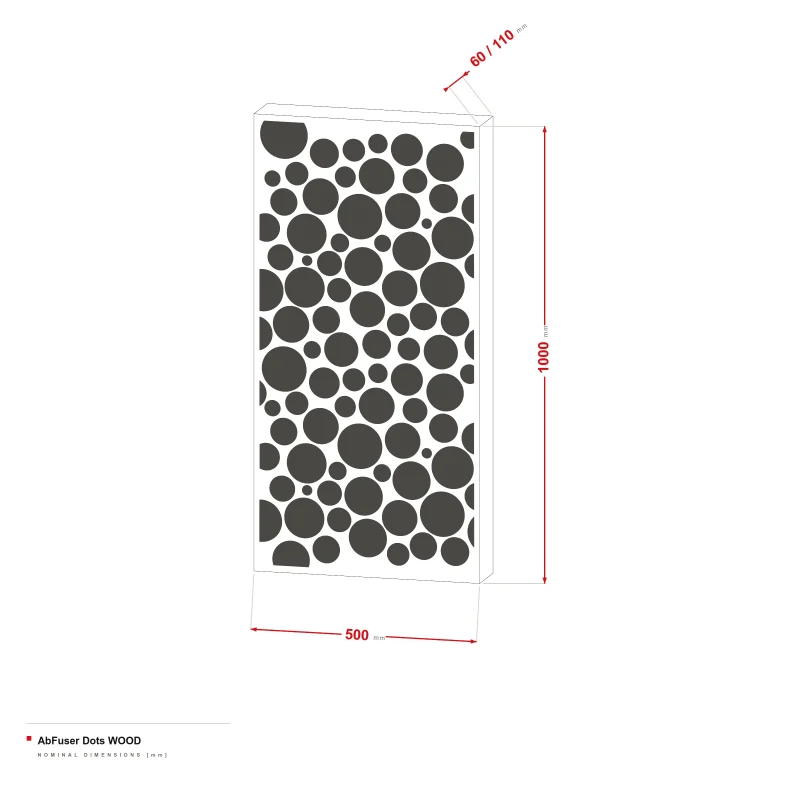

AbFuser Dots Wood - dimensional drawing 100 × 50 cm, 6/11 cm thick

Variant	Price
11 cm	126,90 €
11 cm	126,90 €
6 cm	114,90 €
6 cm	114,90 €

straighten Need a custom size?

Ask for a free quote →

Assembly

Installation in three steps - also on the ceiling

01design_services

Mark the position

Plan the panels' layout and mark the mounting points, checking the level with a spirit level.

02construction

Install the plugs

Use mounting plugs suited to the surface. In the configuration, choose wall or ceiling mounting.

03check_circle

Hang and check the panel

Seat the panel on the fixing elements and check the stability. Given the weight of 5 kg / approx. 6-8 kg, it's best mounted by two people.

quizInstallation instructions come with every order

VIDEO · 0:20

See what the installation looks like

Choosing the quantity

How many panels should you choose for your room?

Enter the room's dimensions and purpose to get an approximate starting point.

Width [m]

Length [m]

Height [m]

The room's purpose

Approximate number of panels

support_agentConsult the selection free of charge view_in_arOrder a 3D acoustic design

Specification

Technical data

Size	100 × 50 cm
Installation	Wall plugs
Intended use	Ceiling / Wall
Hygiene certificate	Certificate for the Addictive Sound Absorber
Construction	First-grade beech plywood / Furniture board / HDF 3mm
Absorbing material	Specialist acoustic wool / EchoFill granulate
Place of production	European Union
Fire resistance	Non-combustibility class of the core: A1 – PN-EN 13501-1
Manufacturer	Addictive Sound
Size	100 x 50 cm
Upholstery fabric	Standard acoustically transparent fabric, 180 g/m²
Weight	5 kg / approx. 6–8

Documents and samples

picture_as_pdfThe front color palette - 10 shadesPDF paletteOrder fabric samples to your homesee the product

Projects

See the AbFuser Dots Wood in real interiors

The perforated front can create a calm rhythm on a single wall or in a larger panel composition.

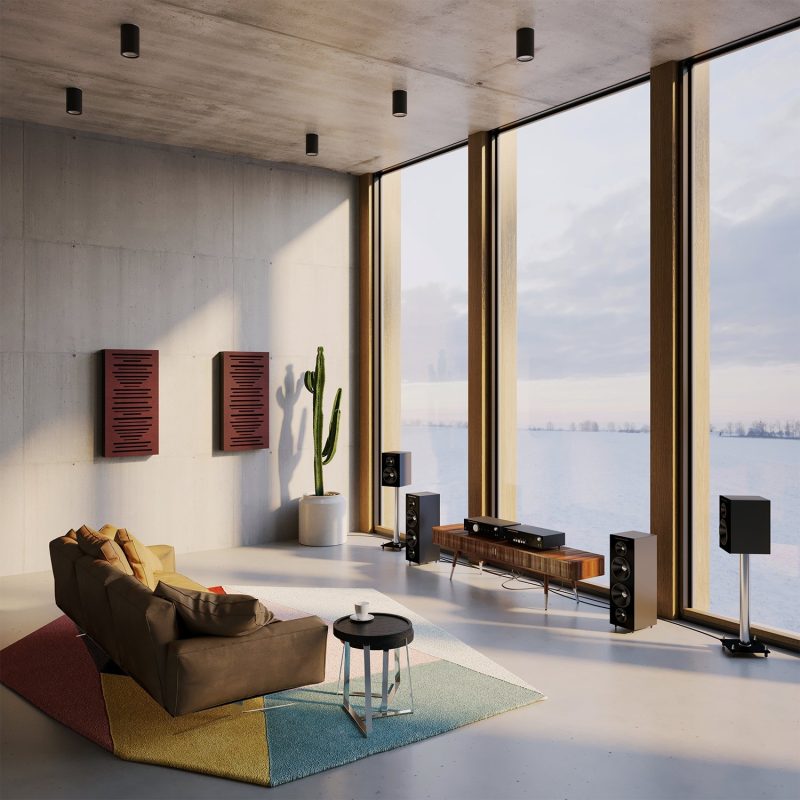

AbFuser in a modern living room with a Hi-Fi set

A panel composition in an industrial interior

A detail of the milled front and the acoustic fabric underneath

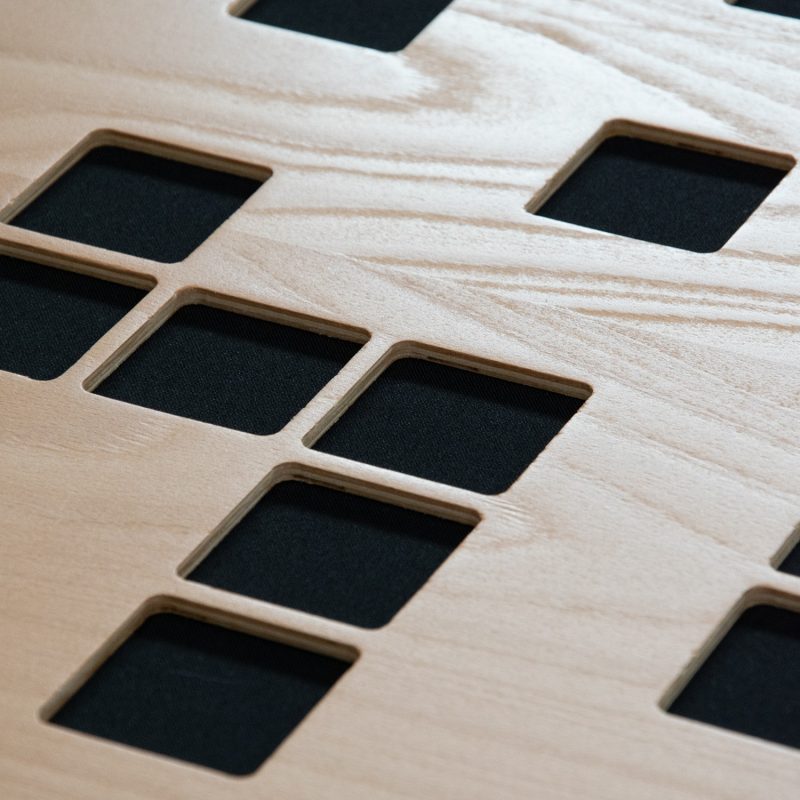

Close-up of the front made of grade I beech plywood

Manufacturer's materials

Get to know the panel through infographics

Scroll to see all the materials. Click a graphic to enlarge it.

Customer reviews

Customer reviews of the AbFuser Dots Wood

4.75/5

starstarstarstarstar

4 verified purchase reviews

5 star3

4 star1

3 star0

2 star0

1 star0

ryan_g01 checkVerified purchase

April 5, 2026

starstarstarstarstar

the dotted front scatters the highs nicely and the bass is under control now. Looks great in the room and feels really well built.

matthias checkVerified purchase

January 4, 2026

starstarstarstarstar

Schickes Lochmuster, dämpft die Höhen schön und schluckt unten ordentlich. Gut verarbeitet, kam bestens verpackt an.

Lucas G. checkVerified purchase

September 1, 2025

starstarstarstarstar

La façade perforée diffuse bien les aigus et le grave est sympa très joli et bien fini.

kamilek_3 checkVerified purchase

August 11, 2025

starstarstarstarstar

Kropki ładnie rozpraszają górę, a dół jest porządnie wytłumiony, w studiu czuć różnicę. Tylko ciężki, kołki trzeba mieć mocne.

Customer reviews from all language versions of the store (4)

FAQ

Frequently asked questions

It combines an absorbing layer with a milled diffusing front. It absorbs low frequencies while scattering mid and high tones.

Greater thickness provides better low-frequency absorption, while 6 cm works well in more compact spaces. You’ll find the prices of both variants in the Dimensions and prices section.

No. The price depends solely on the thickness.

Yes, the configuration offers wall or ceiling mounting. The method is described in the Installation section.

Colors 1-6 use twice-lacquered class I beech plywood, and colors 7-10 painted furniture board. Both fronts are about 4 mm thick.

Use the calculator as a rough starting point. The placement depends on the room and the acoustic problem, so it’s worth consulting the layout.
